High Quality, Competitive Pricing, Personal Service

At Backbone, we strive to provide our clients with high quality machinery and spare parts at the most competitive prices in a fast, efficient and reliable manner.

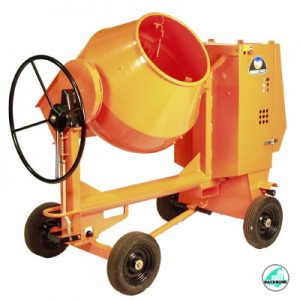

Tilting Drum Concrete Mixer

  • Drum Capacity: 350 L Mixing Capacity: 280 L Productivity: 4-5 m3/h Bags of Cement per Batch: 1 Bag Drum Rotation Speed: 25-30 rpm Upper Drum Thickness: 3 mm Bottom Drum Thickness: 4 mm Mixing Drum Size: ф800×900 mm Tyre Size and Number: 4x(4.00-12) Engine Type: Air-cooled Diesel Engine 178FS(6HP) Total Weight: 295 kg Overall Size (Lxwxh): 1960x120x1650 mm Packing Size (Lxwxh): 1860x860x1100 mm
  • Drum Capacity: 400 L Mixing Capacity: 320 L Productivity: 5-6 m3/h Bags of Cement per Batch: 1 Bag Drum Rotation Speed: 25-30 rpm Upper Drum Thickness: 3 mm Bottom Drum Thickness: 4 mm Mixing Drum Size: ф850×900 mm Tyre Size and Number: 4x(4.00-12) Engine Type: Air-cooled Diesel Engine 178FS(6HP) Total Weight: 315 kg Overall Size (Lxwxh): 2100x1200x1700 mm Packing Size (Lxwxh): 1960x960x1200 mm
  • Drum Capacity: 500 L Mixing Capacity: 400 L Productivity: 6-8 m3/h Bags of Cement per Batch: 1.5 Bag Drum Rotation Speed: 20-25 rpm Upper Drum Thickness: 3 mm Bottom Drum Thickness: 4 mm Mixing Drum Size: ф950×900 mm Tyre Size and Number: 4x(4.00-12) Engine Type: Water-cooled Diesel Engine R180 (8HP) Total Weight: 410 kg Overall Size (Lxwxh): 2160x1200x1750 mm Packing Size (Lxwxh): 2060x1060x1250 mm

 Reversing Drum Concrete Mixer

  • Discharging Capacity: 350 L Loading Capacity: 560 L Productivity: 10-14 m3/h Bags of Cement per Batch: 2 Bag Drum Thickness: 6 mm Drum Size: ф1460×1850 mm Engine Type: Water-cooled Yanmar Diesel Engine CY1105 (18HP) Displace of Hydraulic Pump: 30mL/r Drum Rotation Speed: 14 rpm Power of Water Pump: 0.75 KW Max. Size of Aggregate: 60 mm Tyre Size: 6.50-16 Total Weight: 1800 kg Overall Size (Lxwxh): 3150x2400x3200 mm Packing Size (Lx WxH): 2200x2000x2500 mm

Available in Green & Yellow

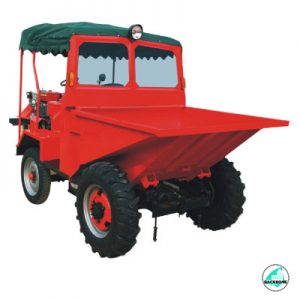

Hydraulic Site Dumper

  • Rated Payload: 1500 kg Rated Capacity of Bucket: 840 L Engine Type: Water-cooled Yanmar Diesel Engine CY1105(18HP) Tipping System: Hydraulic Engine Starting Model: Electric Started Structure of Main Model: Rigid Structure Transmission: 4×2, 3 forward gear, 1 reverse gear Max. Travel Speed: 24km/h Grade Ability: 25° Tyre Size: 7.50-16(Front), 5.00-16(Rear) Min Turning Radius: 3500 m Wheel Tread: 1260 mm Wheelbase: 1500 mm Total Weight: 1200 kg Overall Dimension: 2750x1500x2100 mm

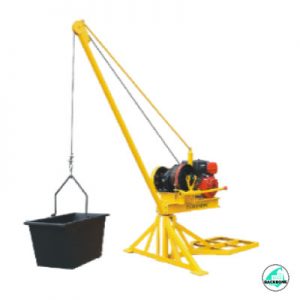

SMALL LIFTER

  • Rated Load: 500 kg Bucket Capacity: 120 L Rated Lifting Height: 25 m Arm Length: 2 m Engine Type: Loben Gasoline Engine (13HP) Max. Rotation Angle: 360° Starting Mode: Manually Total Weight: 160 kg Overall Size (LxWxH): 1700x1400x2400 mm 0 mm

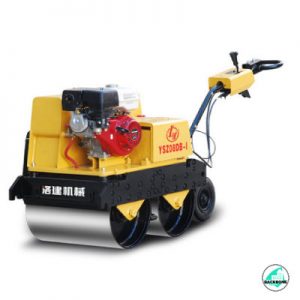

WALK-behind VIBRATORY ROLLER

  • Operating Mass: 600 kg Vibration Drum Width: 600 mm Drum Diameter: ф425 mm Exciting Force: 20 KN Static Linear Load: 53 N/cm Engine Power: 5.5 HP Engine Type: 170FE, Air-cooled Diesel Engine Vibration Frequency: 70Hz Gradeability: 25% Fuel Tank Capacity: 21 L Travel Speed: 0-4km/h Overall Size (LxWxH): 1450x1100x1200 mm

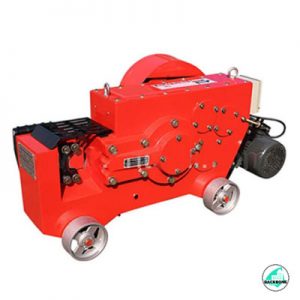

REBAR CUTTER

  • Cutting Ability( Common Round Steel): ф6-50 mm Cutting Ability( Deformed Steel, Grade II): ф8-40 mm Cutting Speed: 28 times/ min Electric Motor Power: 4KW Voltage Standard: 3-Phase, 380V, 50Hz Total Weight: 560 kg Overall Dimension (LxWxH) cm: 143x54x103

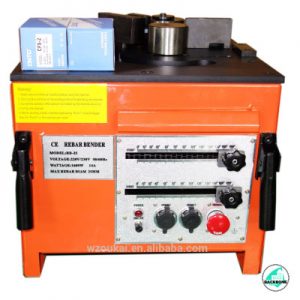

REBAR BENDER

  • Bending Ability( Common Round Steel): ф6-50 mm Bending Ability( Deformed Steel, Grade II): ф6-42mm Max. Bending Speed: 14 times/ min Electric Motor Power: 4KW Power Supply: 3-Phase, 380V, 50Hz Total Weight: 430 kg Overall Dimension (LxWxH) cm: 88x93x103

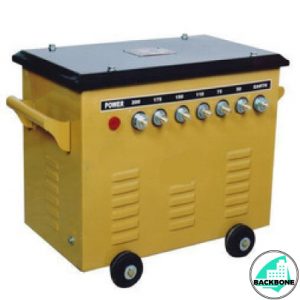

WELDING MACHINES

  • 150Amps, Input Supply: 230 / 440 V, Phase: 1 / 2, Frequency: 50Hz, Max. O.C.V: 60 V, PRI. Current: 1.5 A, Insulation Class: Class E, Approx. Weight: 45 kg
  • 200Amps Input Supply: 230 / 440 V Phase: 1 / 2 Frequency: 50Hz Max. O.C.V: 60 V PRI. Current: 1.5 A Insulation Class: Class E Approx. Weight: 87 kg
  • 250Amps Input Supply: 230 / 440 V Phase: 1 / 2 Frequency: 50Hz Max. O.C.V: 60 V PRI. Current: 1.5 A Insulation Class: Class E Approx. Weight: 97 kg

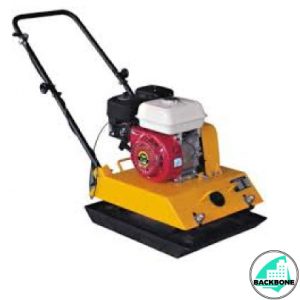

PLATE COMPACTOR

  • Gasoline Plate Compactor Honda GX160 Model: HZR110
  • Weight: 100 kg Output Power: 5.5 HP Frequency: 48 Hz Centrifugal Force: 15 KN Climbing Ability: ≤25° Advancing Speed: 20-30 m/min

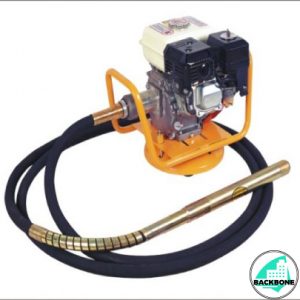

VIBRATOR

  • Petrol Engine Honda Model: GX160 Power: 5.5 HP N.W: 21.5 kg G.W: 22.5 kg Size: 51x38x45 cm
  • Electric Vibrator Motor Model: ZN-G Voltage: 220V Power: 1.5 KW Frequency: 50Hz. Diameter of Matched Vibrator Poker: ф50 mm Length of Matched Vibrator Poker: 6mm Electric Motor Power: 1.5 KW Rated Current: 3.24 A Motor Rotating Speed: 2840 r/min Voltage: 380 V Frequency: 50Hz Gross Weight of Vibrator: 13 kg Gross Weight of Vibrator Poker: 20 kg Packing Size of Vibrator: 34x28x30 cm Packing Size of Vibrator Poker: 84x84x6 cm

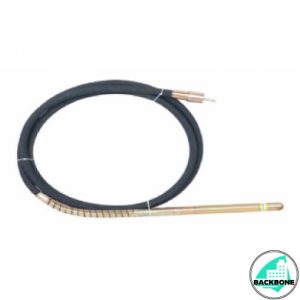

POKER

  • Model: ZX-45 G.W: 19.5 kg N.W: 18.5 kg 45mmx6m 75x75x7.5cm

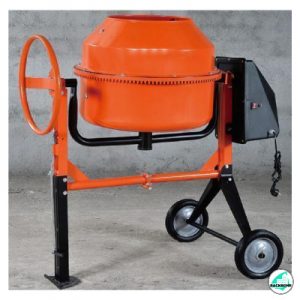

PORTABLE CONCRETE MIXER

  • Drum Capacity:140L  Drum Diameter: ф24″
    Motor Power:600 W   Motor Speed:2800rpm
    Voltage:110V/220 V/230V/ 240V
    Tyre Size: 9″x1.75″
    Carton Size: 72X69X43 cm  G.W./N.W.:56/51 kg
